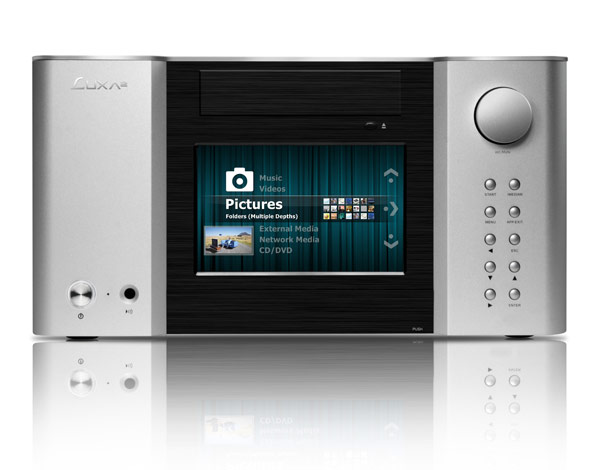

///LM200 Touch Silver 7″ Monitor
  • LM200 Touch
  • LM200 Touch

LM200 Touch Silver 7″ Monitor

$589.99

Endless fun begin with touch

The LM200 Touch is a perfect marriage of tradition and innovation, the entirely new enclosure is forged from aluminum. In using aluminum as the primary material for the enclosure, weight is kept to an absolute minimum. It was designed to fulfill the owner with maximum living pleasure at all times, regardless of location or conditions. With the elegant curves polished by experienced craftsman, LM200 Touch is a masterpiece from LUXA2.

4 in stock

SKU: LVA20052N1Z Categories: , Tag:

Product Description

Endless fun begin with touch

The LM200 Touch is a perfect marriage of tradition and innovation, the entirely new enclosure is forged from aluminum. In using aluminum as the primary material for the enclosure, weight is kept to an absolute minimum. It was designed to fulfill the owner with maximum living pleasure at all times, regardless of location or conditions. With the elegant curves polished by experienced craftsman, LM200 Touch is a masterpiece from LUXA2.Add Product

Patent Information: Taiwan (Patent No.: D129366). China ( Patent No.: 955522

Micro-ATX form factor
With a depth of 400mm, it will comfortably fit inside home theater cabinets but still accommodate a regular sized power supply, Micro-ATX motherboard, and even high end graphics cards up to 11.5 inches. With HDMI motherboard and multi card reader integration, your LM200 Touch will easily turn into your entertainment center in the living room.
Multimedia controller

LM200 Touch remote controller, a comfortable and advanced design completed through the expert experience. The PAD controller is designed to be able to be also used as four (up, down, left, right) arrow buttons on Keyboard.Because the button layout of iMON PAD remote controller is well arranged and many media-play-related buttons are served, it?s very useful on applications such as MultiMedian and Windows Media Center.
The perfect integration with FrontView

FrontView, the new user interface for iMON Touch LCD, not only shows much more information than iMON LCD can do but also let user control media and applications by his finger or stylus pen.

In Display Mode, FrontView displays System Info (CPU, RAM, HDD, Network usage rate) with Headline News. Also FrontView displays Media Info (Media File Name, Track No, Running Time, Total Time, Media File Info, Volume) with Graphic EQ when system plays media file. It displays Calendar and weather info too. In Control Mode, user can control Playback (Play, Pause, Next, Prev, FF, Rew), Volume (Up and Down), Navigate menu(Up, Down, Right, Left, Enter, Menu and so on), Go to media (Music, Movie, Photo, DVD, TV and Webcasting) and various applications (Application Launcher, Task Switcher and Shutdown).

7″ inches LCD touch screen
Featuring an impressive 7″ inch LCD touch screen which provides the user with an interface to control your media center from the enclosure without the need to turn on your main display.

Total silence design with sturdy aluminum
The entire enclosure is constructed and polished with 5mm solid piece of aluminum to reduce vibration and isolate noise. To ensure the perfection on every surface, brushed finish process is carefully applied on LM200 Touch.



Product Name LM200 Touch
P/N LVA20052N1Z
Case Type HomeTheater Media PC
Media Kits Built-in all new revolutionary 7″ touch screen hot keys module

If you have any further question about our media lab device that you can’t find info from our web or FAQ. Welcome to visit the media lab forum for your reference and further assistance.
http://www.soundgraph.com/forums/forumdisplay.php?f=28

Touch Screen Screen Size : 7″ Wide LCD
Screen Ratio : 15:9
Maximum Resolution : 1024 x 768
Screen Output : D-Sub
Power Input : 12V DC
Touch Screen
Dimension
Height: 203.5mm (8.01 inches) / foot stand included: 218mm (8.58 inches)
Width: 400mm (15.75 inches)
Depth: 410mm (16.14 inches)
Weight 8.77kg / 19.33 lbs.
Cooling System Rear : 120 x 120 x 25 mm / 4.72 x 4.72 x 0.98 inches Silent Fan, 1300rpm, 17dBA
Drive Bays -Accessible -Hidden 3
1 x 5.25″
2 x 3.5″
Material Aluminum extrusion
Color Front Panel: Black / Body: Silver
Front I/O USB 2.0 x 2, IEEE 1394 Firewire, HD-Audio, multi-card reader
Card Reader Slot MS/Pro/Duo, CF/Micro drive, MMC, SD,SM??23in1 multi-card reader
Expansion Slots 4
Motherboards Micro ATX / Mini ITX
PSU Standard PSII Power Supply (Optional)



Additional Information

Weight 20 lbs
Dimensions 16.4 × 15.75 × 8.58 in
